AI Smart Dashcam

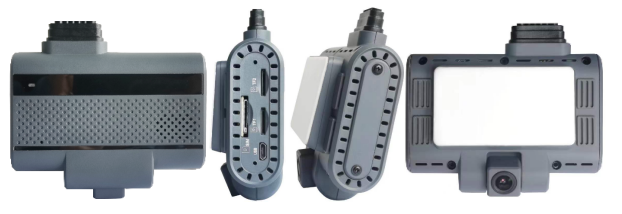

	4G WiFi Dashcam with DMS/ADAS/BSD

Description

开云(中国)Kaiyun·官方网站 - 登录入口

Description

PCL-110 integrates LTE/WiFi wireless communication and GPS in one device, providing comprehensive video recording. It is the top-rated integrated video telematics HD dash camera solution for fleets. Using DMS/ADAS/BSD technology enabled with dash camera, you can capture what matters, coach your drivers, mitigate risk.

Features:

Built-in high performance image processor chip
H.264/H.265 video encoding, high compression ratio, high image quality
1CH built-in ADAS Camera
Support 3CH extension 720P Camera
Support AHD/TVI/CVI/IPC/ Analog video inputs
1CH Video & Audio output synchronously
Unique GPS drift suppression algorithm
Built-in G-sensor, monitoring of vehicle driving behavior

Power Supply:

Professional vehicle power supply 9-36V DC wide voltage
Low voltage, short circuit, reverse connection and other protection
Support intelligent power management identification, low power automatic shutdown, flameout low power consumption

Data Storage:

A special file management adopted to encrypt data to effectively protect data security
Unique Micro SD card corrupted track/sector detection technology，keep video recording continuity ,increase the Micro SD card service life
Built-in super capacitor prevents data loss and disk damage
Support Micro SD (single/dual) card storage, maximum 512G

Wireless Module:

Built-in GPS/BD/GLONASS module, high sensitivity, fast positioning
Built-in 4G module, support LTE/HSPA/WCDMA
WIFI module,support 802.11b/g/n,frequency 2.4ghz

Parameters:

Item

Device parameter

Performance

System

Embedded Linux operating system

Language

Chinese/English Etc...

Interface

Maintenance Tool operation

Password Security

User Password、Administrator Password

Audio and
video

Video Formats

PAL/NTSC

Video Compression

H.265/H.264

Video Resolution

1080P (ADAS Camera,optional)/ 720P /960H/D1/CIF

Playback Resolution

1080P (ADAS Camera,optional)/ 720P /960H/D1/CIF

Video input

2-4CH

Video quality

Grades 1 to 6

Audio formats

G711A,G711, G.726, MG.726, ADPCM, IMA

Audio Record Type

Audio & Video Record synchronously

Video and playback

Video Record Type

Automatically or Drive by Alarm

Audio Bitstream

8Kb/s

Video query

Search by channel, video type

Firmware Upgrade

Upgrade mode

Manual upgrade, automatic upgrade, remote upgrade

Upgrade way

USB , Micro SD card, network(WIFI)

Interface

Audio Input

3CH BMW interface,built-in high sensitive microphone

Video Output

1CH BMW interface video output;Built-in 1.5W speaker

Alarm Input

3CH Input (Positive/Negative trigger optional), Suppot 1-2CH analog input)

Alarm output

2ch outputs,could drive relay(＜150mA)

SD card

2* Micro SD card slot

USB Interface

1*MICRO USB Port

Ignition Input

1Ch ACC Signal

LED light

PWR/RUN

RS232

2* RS232 Interface(1*DEBUG,1* General fuction)

SIM Interface

1* MICRO SIM Port

Extion Fucntion

GPS

Built-in Ceramic Antenna; GPS+BD

Support All 4G netcom

WIFI

support frequency 2.4GHZ

Other

The power input

DC: 9 v ~ 36 v

Camera Consumption

0.5A/12V

Typical power consumption

Power consumption: AVG 100W (excluding peripherals)

Working Temperature

-20 --- 70℃

Storage capacity

720P 270MB/Hour/Channel H.265
720P 510MB/Hour/Channel H.264

Dimension

111.38*87.3*27mm (mm)
