	ODM/OEM Intelligent Electronic Lock

Description

1. Description

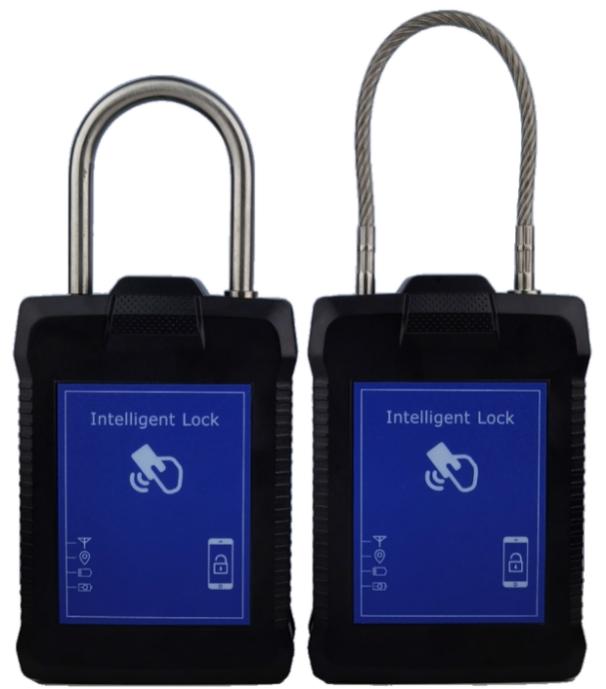

LT1000L is an intelligent tracking lock device for asset management system, which provides enhanced functionality, easy installation, and has wide range of applications. It can greatly reduce the financial losses incurred by the difficulty in tracking valuable equipment such as trailers, containers, construction machines and other valuable mobile and fixed assets.

This unit is equipped with improved IP67 enclosure and dual tampering detection mechanism, with a durable and long-life battery, without direct access to a power supply and ongoing maintenance, which enable this unit one of the best choice for valuable mobile assets monitoring.

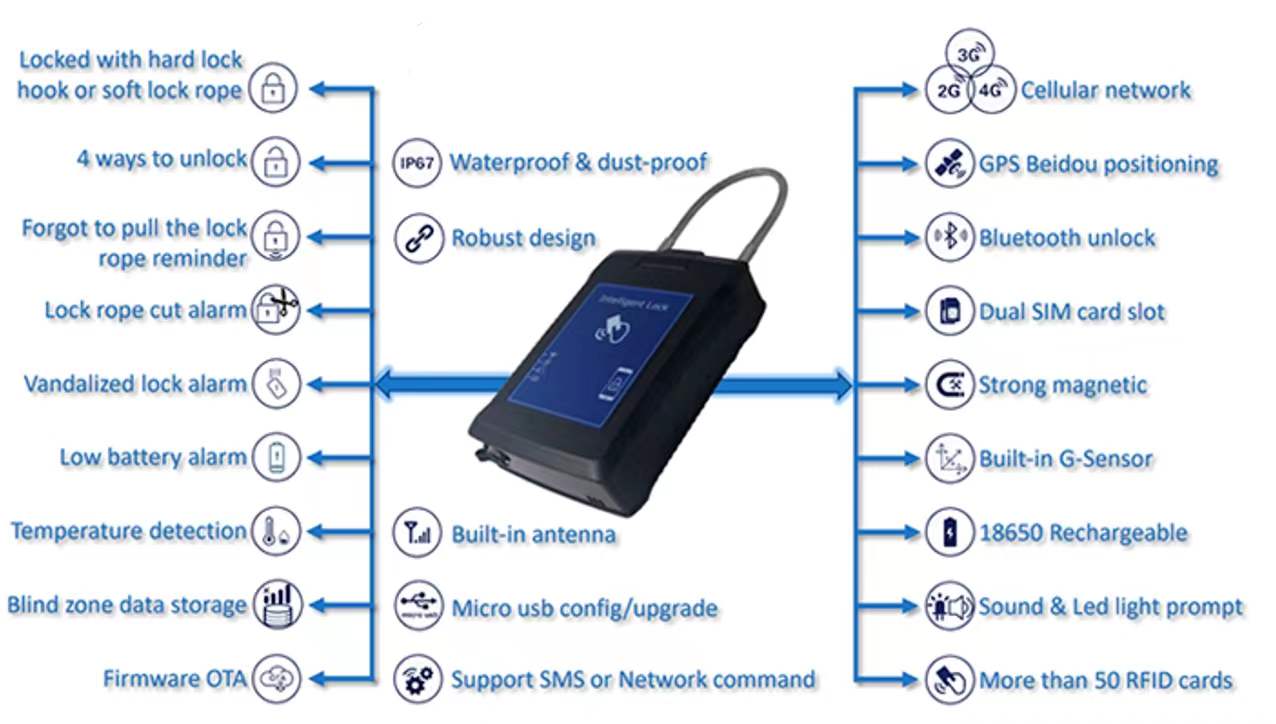

2. Highlights

☆Monitoring when and where your truck’s door is open
☆Authorize your asset’s door can only be open in a specific Geo-fence
☆Padlock management software with Battery status, Lock status, Back cover status
☆IOS/Android Mobile App’s monitoring status, remotely Open lock by APP
☆RFID card open, or authorized by SMS or Mobile APP
☆Large capacity battery, long working time
☆IP67 waterproof design,strong magnetic adsorption, silicone back sticker
☆Build-in 8M flash, it can store 25000 pieces blind data packages
☆Support dual SIM cards

3. Functions

☑Built-in GPS/BeiDou module, real-time tracking by GPS/BeiDou/LBS
☑Unique design, RFID/SMS/BLE/Network password unlock
☑Security monitoring, illegal unlocking alarm
☑Support both hard lock hook & soft lock rope
☑Friendly LED and sound prompts
☑Multi working mode, built-in rich function configuration
☑Wake up model, Call / SMS / Swiping card / Vibration / Lock-string tamper / Back cover open
☑Door open/closed status monitoring
☑Battery charge level,battery level status monitoring
☑Temperature,mostly significant for temperature sensitive shipments
☑Alarms
☆ Lock-string tamper alarm
☆ lock rope cut alarm (Soft lock rope supports short circuit detection)
☆ Swiping card alarm
☆ Unlock alarm
☆ Wrong password alarm
☆ Geo-fence alarm
☆ Back cover open alarm
☆ Smash lock alarm
☆ Door open alarm
☆ Door close alarm

4. Applications

☆ Cargo Transportation
☆ Container monitoring
☆ Security Companies
☆ Customs Operations
☆ Commercial / Retail
☆ ODM/OEM

5. Specifications

Name	Parameter
Padlock size	46111251 mm
Weight	Lock weight 0.8KG Total package 1.1kg (35cm soft lock rope) Total package1.2kg (hard lock hook)
Brown Box Dimension	16.5cm x 11.5cm x 4.5cm
Carton Dimensions	43cm x 38cm x 30cm
Units per Export Carton	20
Tracker unit Color	Black
Working voltage	5V DC
Working current	Sleep/Idle 0.1mAh,2G 66mAh,4G 75mAh (upload interval 1 mins)
Back-up battery	Built-in 4*2600mAh 18650 Li-ion cell.Total 10400mAh
Flash memory	4096KB
Static RAM	128KB
G-sensor	Build-in
Working temperature	-25℃ -- 75℃
Moisture	5% -- 95% (Non-water vapor condensation state)
Frequency Band	2G Version Quectel M26 GSM 900/1800/1900/850Mhz
Frequency Band	4G Version Quectel EC200A/AU 4G: LTE-FDD B1/B2/B3/B4/B5/B7/B8/B28/B66 LTE-TDD B40 3G: WCDMA B1/B2/B4/B5/B8 2G: GSM/EDGE B2/B3/B5/B8
GPS Module	GPS L1 C/A: 1575.42 MHz GLONASS L1: 1602 MHz BeiDou B1: 1561.098 MHz
BLE Module:	BLE 4.2 (Standard)
RFID reader:	125K Hz ID card reader
Padlock Material	Shell: Hardened Plastic Shackle: 304 Stainless steels
Access port	Micro USB
