	7INCH Waterproof MDT

Description

u Product Features

Channel Blind Zone Coverage

Supports up to four AHD720P/1080P HD cameras, providing real-time monitoring of front, rear, left, and right blind spots around the vehicle.

Proactive Safety Alert

Pedestrian detection combined with turn-triggered warnings: automatically identifies pedestrians during left/right turns or reversing, activating in-cabin alerts and external Sound & Light Alarm. Optional Perimeter Warning Light.

Storage & Power Management

Utilizes Micro SD card storage (64GB–256GB supported) for continuous loop recording. Operating voltage ranges from 9–36 VDC with automotive-grade surge, overload, over-voltage, and reverse polarity protection. Full-load power consumption remains below 10W.

Display & Multi-View Mode

Features a 7-inch 1024 × 600 IPS screen supporting multi-split display. It shows four real-time video views, and automatically switches to full-screen view when the turn signal is triggered.

Surveillance Mode

The system continues recording for 1–10 hours (configurable) after the vehicle is turned off. In parking mode, it automatically detects anomalies (e.g., fuel theft) and triggers alerts while saving video evidence.

Protection

The entire system (including display, cameras, alarm, and warning lights) is rated IP69K for dust and water resistance, and operates within a wide temperature range of -20°C to 70°C.

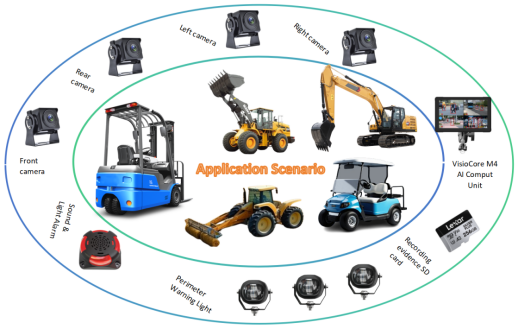

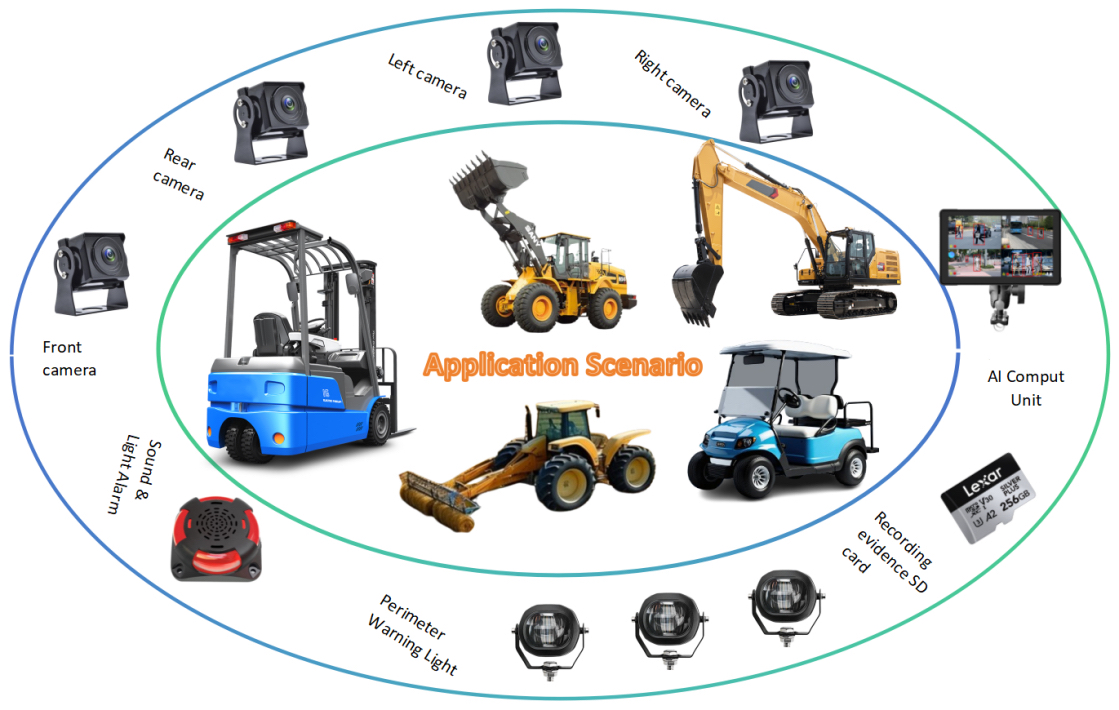

For forklifts, sightseeing/golf carts, agricultural machinery, construction machinery, and other special vehicles.

Model	PCL-MDT700
Languages	Simplified Chinese / English / Traditional Chinese / Additional Languages (Optional)
User Interface	Graphical menu operations
Control Method	Touchscreen
Video Input	4-channel AHD 720P/1080P HD video input
Recording Mode	Auto-record upon startup, reverts to recording interface after 30 seconds of inactivity.
Video Format	TS; videos from each channel are saved in separate folders; recording duration is user-configurable
Video Storage	CLASS10 U1 or higher; minimum 64GB, supports up to 256GB
Playback	Local playback with instant access via dedicated playback button
Display	7-inch HD IPS screen, 1024 × 600 resolution; supports multi-view and split-screen modes
Mirror/Flip	Individual camera image mirroring and rotation supported via settings
Triggered Display	Automatically switches to full-screen view of corresponding camera when reverse, left-turn, or right-turn signal is activated
Screen Saver	Configurable: 1 min / 5 min / Off
Pedestrian Detection	On-device edge AI computing unit with dedicated algorithms
Warning Device	Sound & Light Alarm + Perimeter Warning Light (can be installed simultaneously to direct warnings to blind spots for pedestrians)
Parking Surveillance	Supports parking mode (configurable: Off / 1 / 2 / 5 / 10 hours); automatically alerts and records upon detecting anomalies
Operating Voltage	9-36V DC，automotive-grade protection against surge, overload, overvoltage, undervoltage, and short circuit
Power Consumption	<10 W at full load
IP Rating	IP69K (display, cameras, alarm, and warning lights all comply)
Operating Temperature	-20℃ to 70℃
Storage Temperature	-40℃ to 80℃
Size	179mmx110mmx27mm
Weight	TBD
